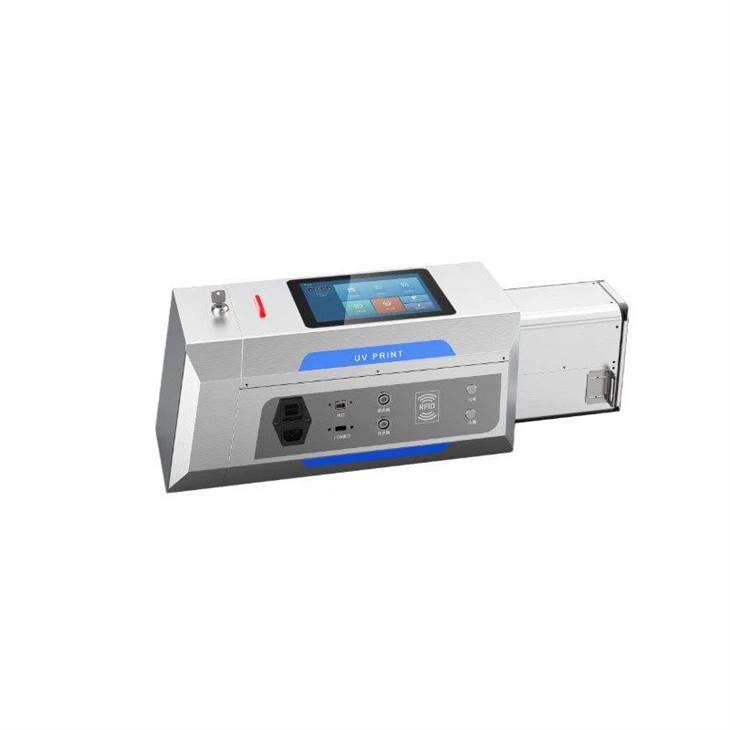

Piezo UV Inkjet tshuab luam ntawv Ricoh G4

Qauv: A400
Lub taub hau hom: Ricoh G4
Print Height: Ib Lub Taub Hau: 32.4mm (txog 8 lub taub hau, 259mm)
Lub cev daws teeb meem: 300DPI
Printing kev daws teeb meem: 100-3000DPI
Printing ceev: Mus txog 165m / min

Xa kev nug

Khoom Taw qhia

Khoom Parameters

Khoom npe	Piezo UV Inkjet tshuab luam ntawv Ricoh G4
Qauv	A400
Qhov system	2nd Generation Android Industrial Inkjet System
Screen	13
Sau lub taub hau hom	Ricoh G4
Sau Qhov siab	Ib Lub Taub Hau: 32.4mm (txog 8 lub taub hau, 259mm)
Lub cev daws teeb meem	300 DPI
Printing kev daws teeb meem	100-3000DPI
Ink dot loj	7 npl
Inkjet luam ntawv nrug	1-5 hli
Kev luam ntawv ceev	Mus txog 165m / min
Hom cwj mem	UV number case, roj-raws li number case
Sau cov lus qhia	Up, down thiab sab
Ink muab system	Tsis zoo siab thiab siphon yeem
Kub / Humidity	0 degree -45 degree 15%-75%
suav nrog	1 * UV inkjet tshuab luam ntawv +1* UV curing teeb +1* UV number case +1* Gantry bracket+1 teeb accessories

Khoom Paub meej

Nws siv Japanese Ricoh printheads, nrog rau ib tug printhead muaj 384 nozzles. Txawm hais tias tus naj npawb ntawm cov nozzles tsawg dua li ntawm Ricoh G5, nws tseem tuaj yeem ua kom muaj kev luam ntawv zoo. Nws lub tshuab luam ntawv zaus yog 30 Hz, thiab inkjet ceev ceev, uas tuaj yeem ua tiav kev luam ntawv ceev ntawm 1 txog 165 meters / feeb, uas tuaj yeem ua tau raws li ntau yam kev xav tau ntau lawm.

Hais txog cov nyhuv luam ntawv, nws muaj kev daws teeb meem siab, nrog rau kab rov tav kev daws teeb meem ntawm 600dpi thiab ntsug kev daws teeb meem ntawm 150-1200dpi, uas tuaj yeem nthuav tawm cov ntawv ntshiab thiab ilv, duab thiab barcodes.

Lub tshuab luam ntawv siv UV ib puag ncig tus phooj ywg number case, uas muaj zog adhesion thiab hnyav tsis kam. Qhov saum npoo muaj qhov tshwj xeeb concave thiab convex kev ntxhib los mos tom qab coding, thiab xim number case yog nplua nuj, nrog rau xim dawb, dub thiab lwm yam xim, haum rau ntau yam ntaub ntawv, xws li yas, hlau, iav, thiab lwm yam.

Ricoh G4 UV inkjet tshuab luam ntawv yog ib qho yooj yim rau kev khiav lag luam, nrog rau cov neeg siv-phooj ywg interface thiab intuitive tswj system. Nws kuj muaj kev ua haujlwm ruaj khov thiab txhim khu kev qha zoo, tuaj yeem ua haujlwm ruaj khov rau lub sijhawm ntev, thiab txo cov nqi kho khoom siv zoo. Tsis tas li ntawd, nws cov qauv tsim compact thiab me me hneev taw ua rau nws yooj yim rau nruab thiab siv hauv ntau qhov chaw sib txawv. Txawm hais tias hauv kev lag luam ntim khoom, daim ntawv lo luam ntawv, lossis lwm yam kev lag luam, Ricoh G4 UV inkjet tshuab luam ntawv tuaj yeem ua lub luag haujlwm tseem ceeb thiab muab cov kev daws teeb meem zoo rau kev txheeb xyuas cov khoom.
